JK57HSN21 NEMA23 Encoderli Step Motor ve Sürücü
Category
Stock Code
NEMA23.004

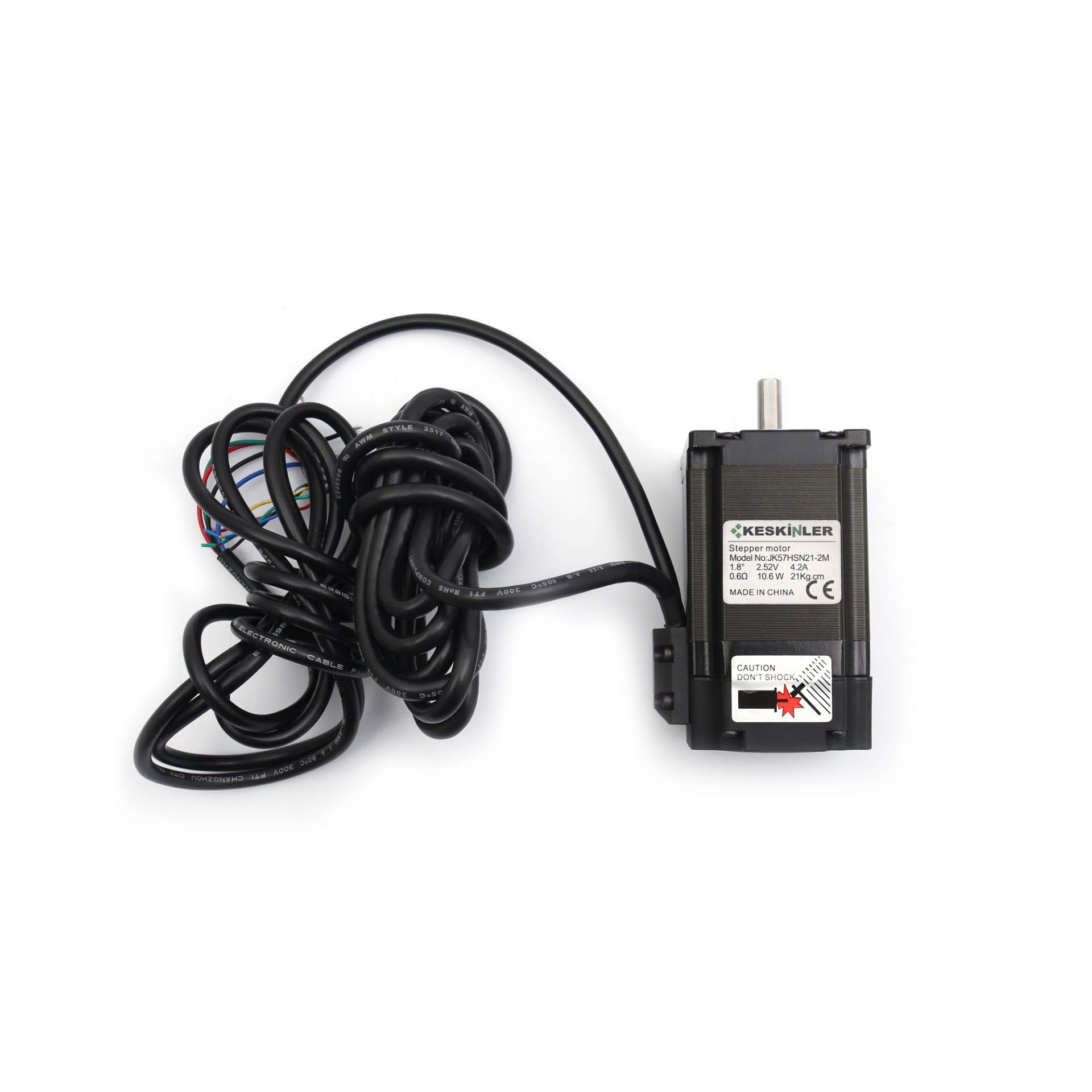

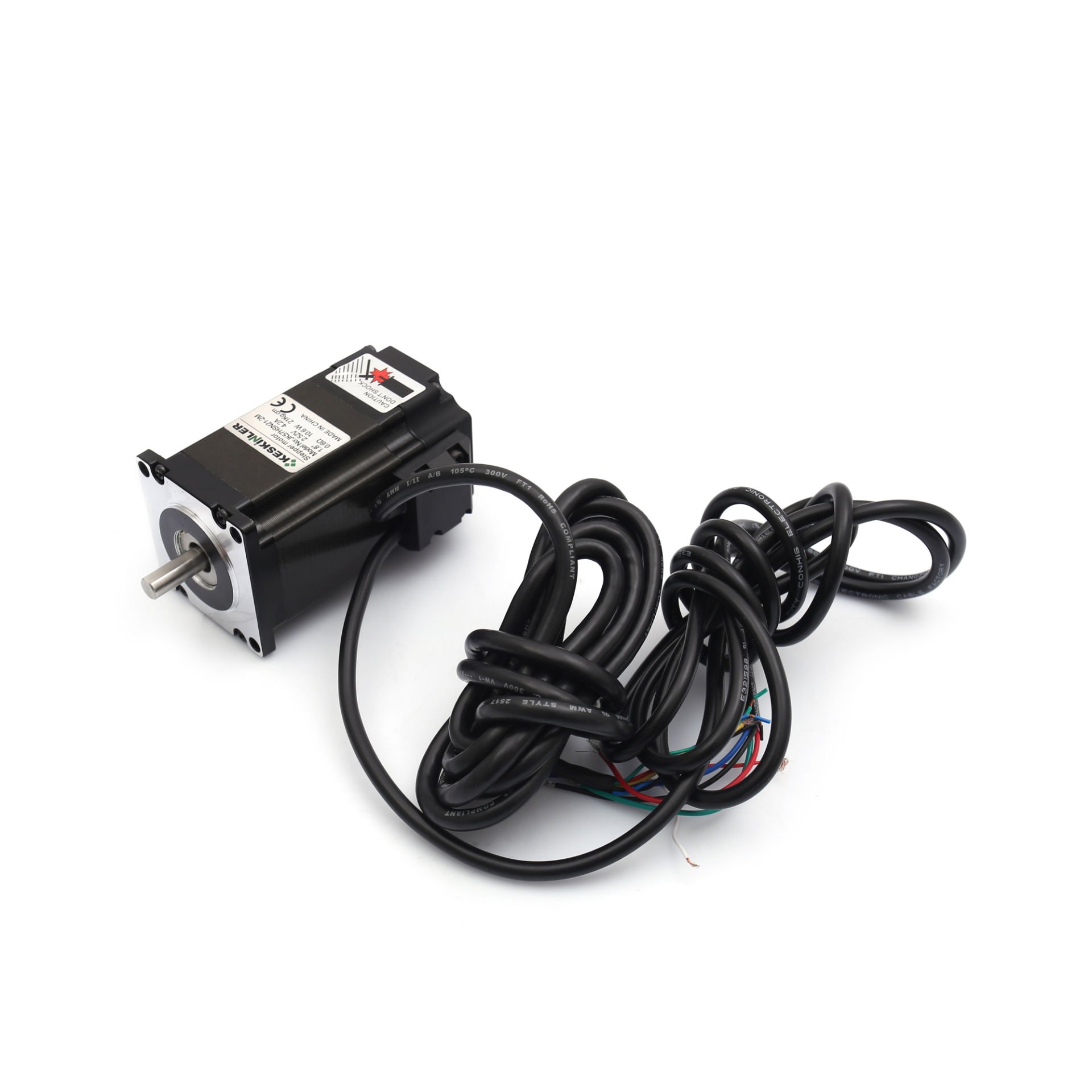

JK57HSN21 NEMA23 Encoder Stepper Motor and Driver
JK57HSN21 NEMA23 Encoder Stepper Motor is a type of motor that you can use in your projects that require precise positioning, in machine manufacturing, and in various machines you manufacture. Encoder stepper motors are also called closed loop stepper motors.

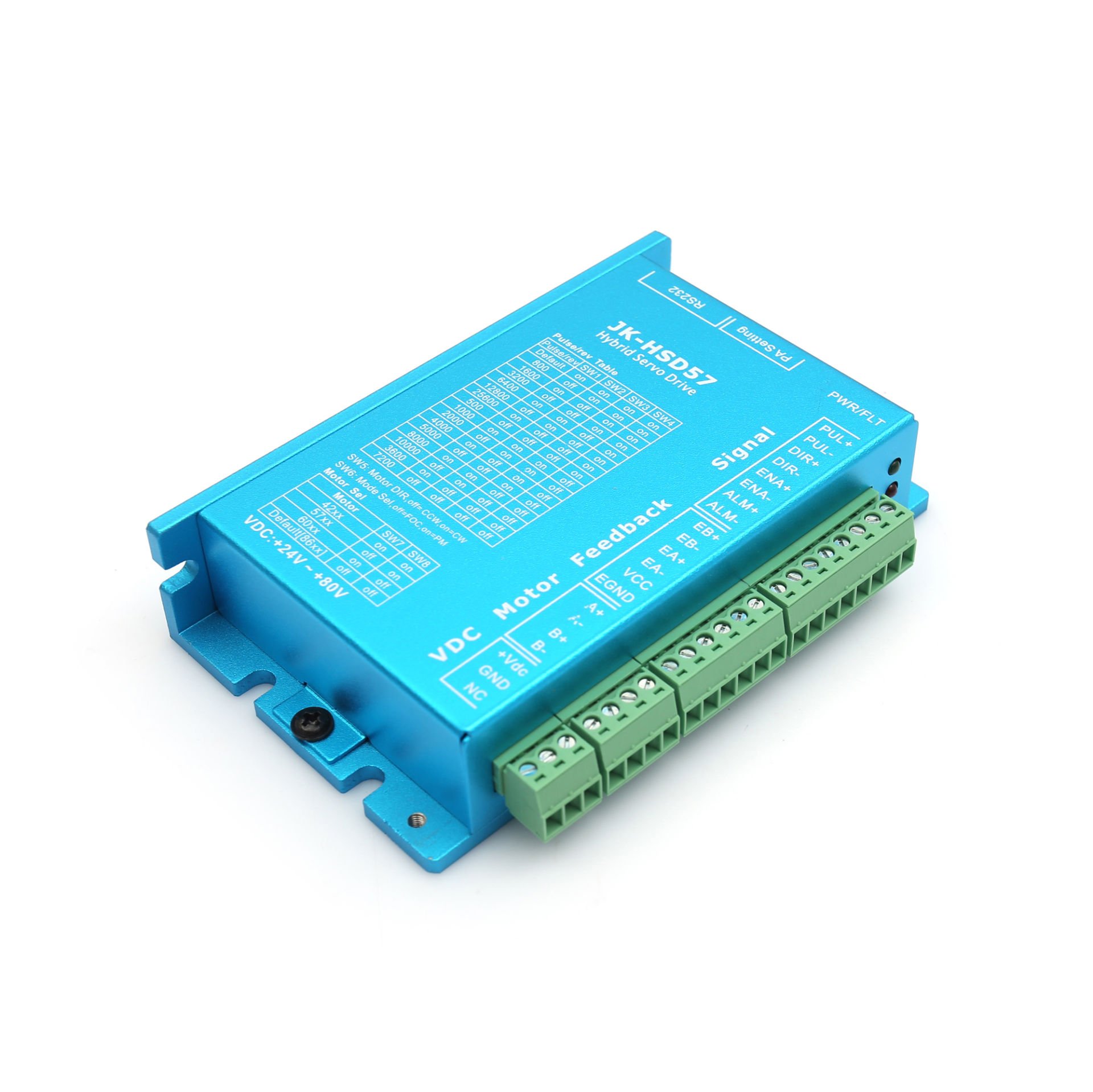

This stepper motor is sold with its driver.
Features:
- Angle Value: 1.8 degrees
- Voltage: 3.36V
- Peak Current Value: 4.2 A
- Torque: 21 kg.cm
- Weight: 1.1 kg
Cable Colors:
- Black: A+
- Green: A-
- Red: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White
Technical Drawing:
