YN90-120 220V 120W 36RPM Flanşlı AC Motor
Category
Stock Code
ACLNX1.051

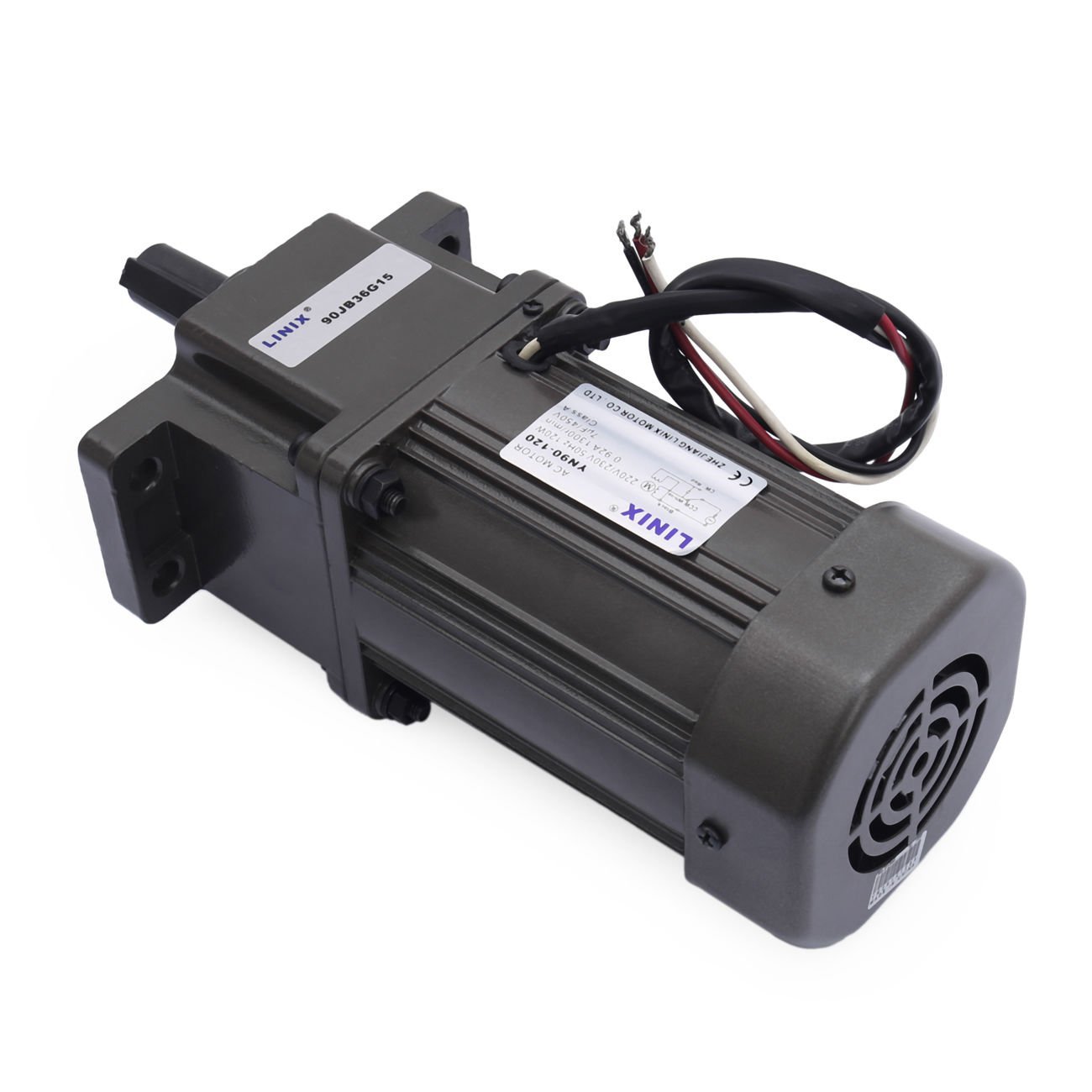

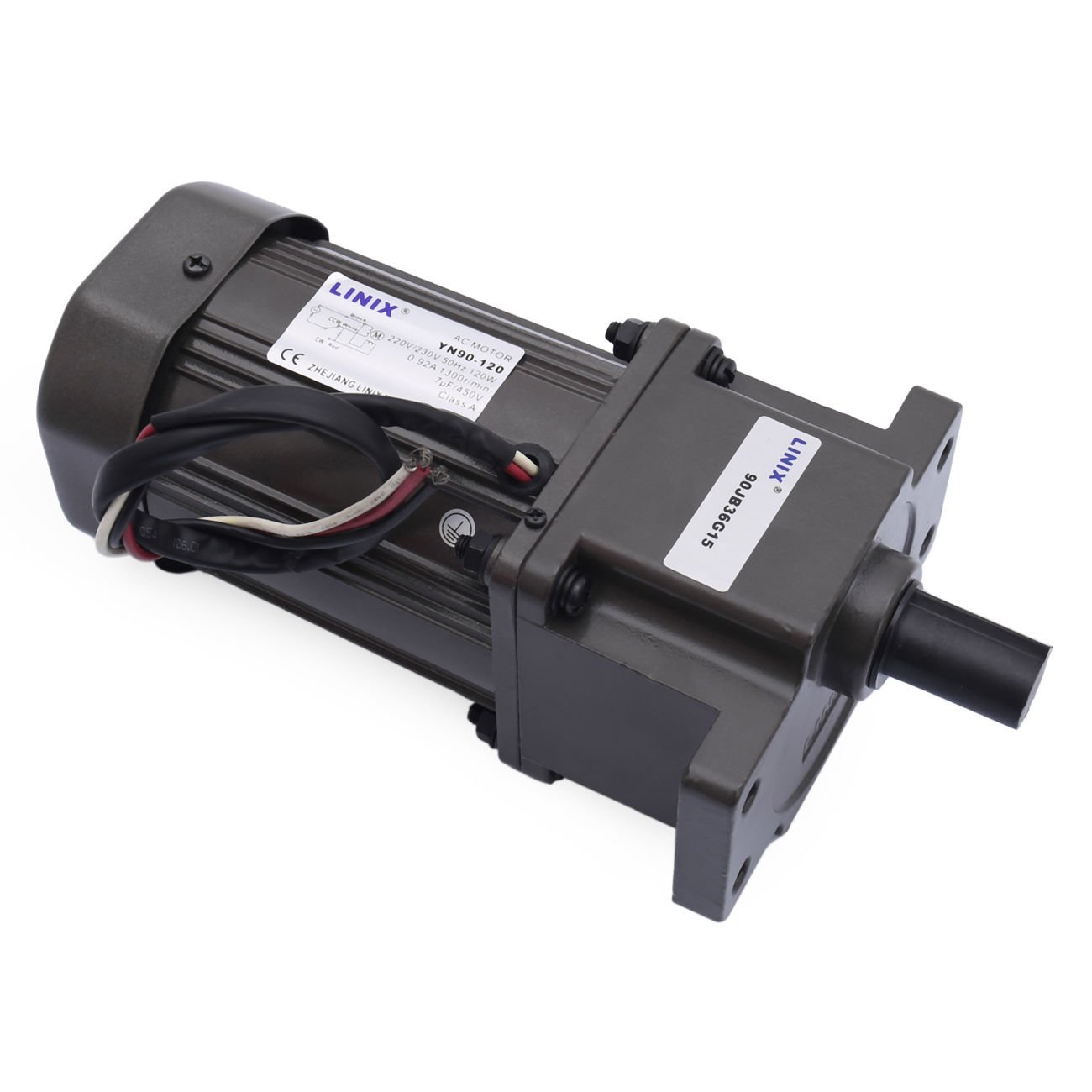

YN90-120 220V 120W 36RPM Flange AC Motor
YN90-120 is a motor type with a 90mm reducer diameter and 120 watt power, which is frequently preferred in industrial applications and machine manufacturing. Technical drawing, speed and torque information of the product are given below. You can contact us for other speed options and bulk purchases.
Features:
- Supply Voltage: 220/230V AC
- Frequency: 50 Hz
- Power: 120W
- Current: 0.92A
- Torque: 200 kgf.cm
- Reducer Ratio: 1:36 90JB36G15
- Speed: 36 RPM

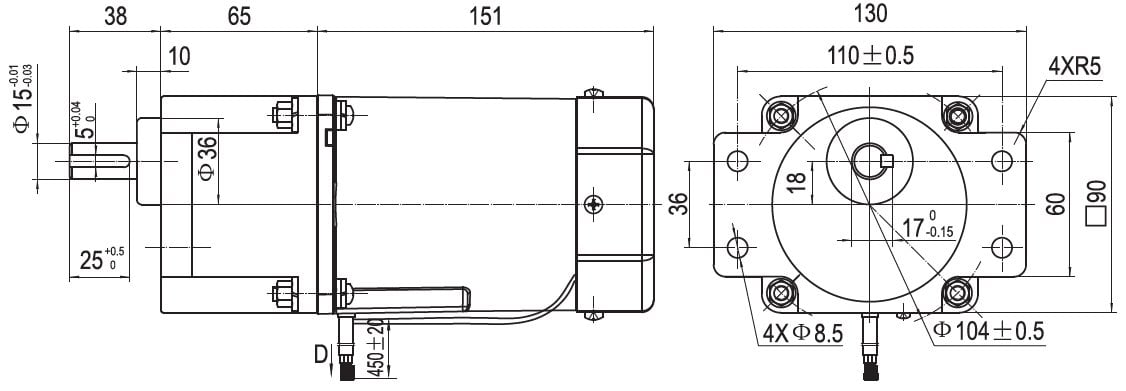

Technical Drawing:
