JK86HSN120 NEMA34 Encoderli Step Motor - Soketli
Category
Stock Code
NEMA34.009
JK86HSN120 NEMA34 Encoder Stepper Motor
JK86HSN120 NEMA34 Encoder Stepper Motor is a type of motor that you can use in your projects that require precise positioning, in machine manufacturing, and in various machines you manufacture. Encoder stepper motors are also called closed loop that is, closed circuit stepper motors.
Features:
- Angle Value: 1.8 degrees
- Voltage: 2.64 V
- Peak Current Value: 6 A
- Torque: 12 N.m
- Weight: 5.6 kg
Cable Colors:
- Red: A+
- Green: A-
- Yellow: B+
- Blue: B-
Encoder Connection:
- EA+: Black
- EA-: Blue
- EB+: Yellow
- EB-: Green
- Vcc: Red
- EGND: White

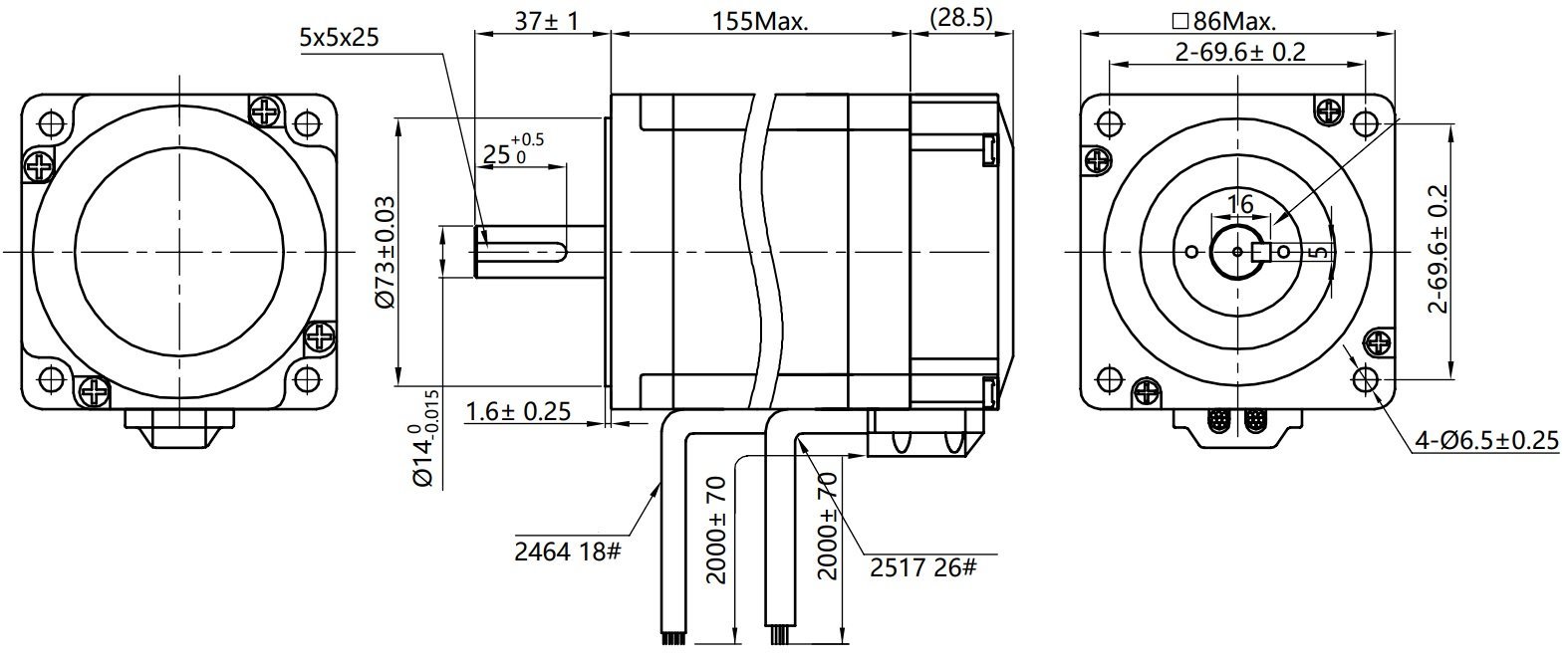

Technical Drawing:
