JK57HS76-5004 NEMA23 Stepper Motor
Category
Stock Code
NEMA23.008

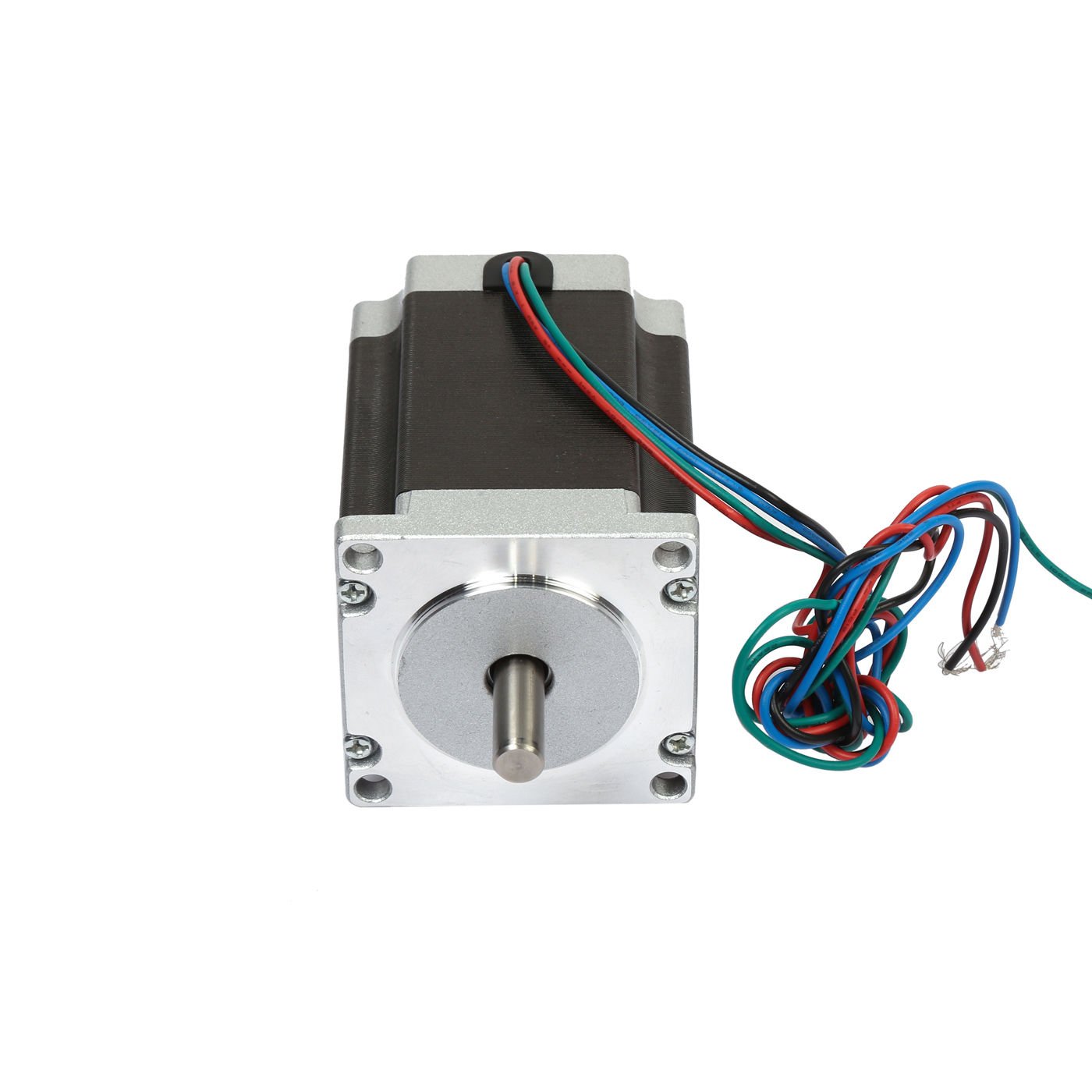

JK57HS76-5004 NEMA23 Stepper Motor
JK57HS76-5004 NEMA23 Stepper Motor is a type of motor that you can use in your projects that require precise positioning, in machine manufacturing, and in various machines you manufacture.
Features:
- Number of Phases: 2
- Angle Value: 1.8 degrees
- Voltage: 1.9V
- Peak Current Value: 5 A
- Phase Resistance: 0.38 Ohm
- Torque: 23 Kg.cm
- Weight: 1.1 kg
Cable Colors:
- Red: A
- Blue: C
- Black: B
- Green: D
A and C are common, B and D are common.

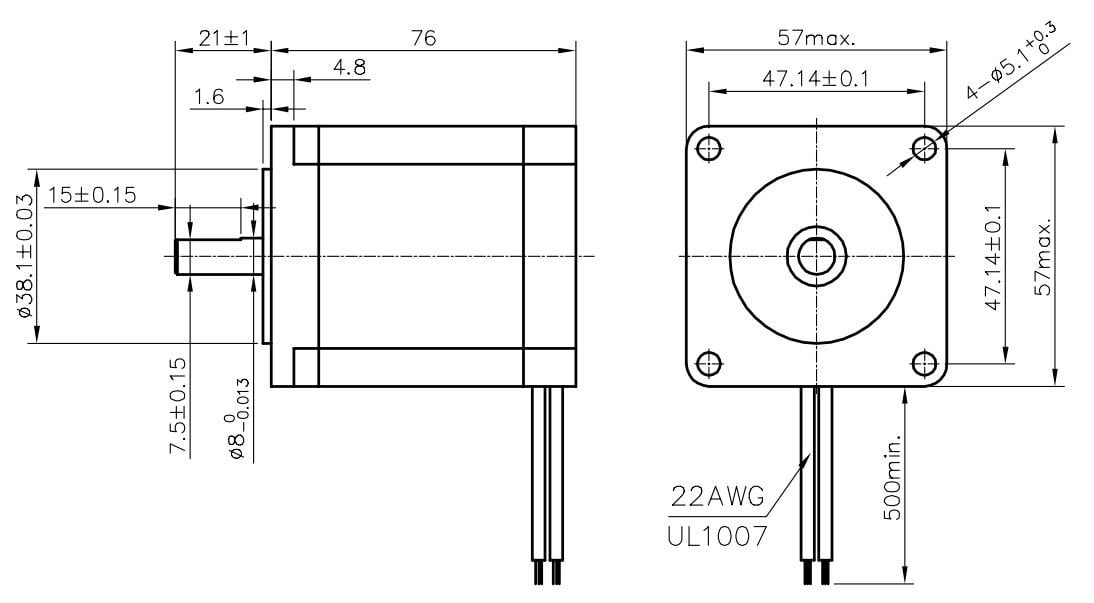

Technical Drawing:
